Simple test¶
Ensure your device works with this simple test.
examples/simple_dial_test.py¶
1# SPDX-FileCopyrightText: 2023 Jose David Montoya
2#
3# SPDX-License-Identifier: MIT
4
5import time
6import board
7import displayio
8import terminalio
9from circuitpython_simple_dial.simple_dial import Dial
10from circuitpython_simple_dial.dial_needle import needle
11
12
13display = board.DISPLAY
14
15# Create a Dial widget
16my_dial = Dial(
17 x=100, # set x-position
18 y=120, # set y-position
19 width=150, # requested width of the dial
20 height=150, # requested height of the dial
21 padding=12, # add 12 pixels around the dial to make room for labels
22 tick_label_font=terminalio.FONT, # the font used for the tick labels
23)
24
25my_needle = needle(my_dial)
26
27my_group = displayio.Group()
28my_group.append(my_dial)
29
30display.show(my_group) # add high level Group to the display
31
32step_size = 1
33
34for this_value in range(1, 100 + 1, step_size):
35 my_needle.value = this_value
36 display.refresh() # force the display to refresh
37time.sleep(0.5)
38
39# run the dial from maximum to minimum
40for this_value in range(100, 1 - 1, -step_size):
41 my_needle.value = this_value
42 display.refresh() # force the display to refresh
43time.sleep(0.5)
Two Needles¶
Example to use dial with two needles
examples/simple_dial_two_needles.py¶
1# SPDX-FileCopyrightText: 2023 Jose David Montoya
2#
3# SPDX-License-Identifier: MIT
4
5import time
6import board
7import displayio
8import terminalio
9from circuitpython_simple_dial.simple_dial import Dial
10from circuitpython_simple_dial.dial_needle import needle
11
12
13display = board.DISPLAY
14
15# Create a Dial widget
16my_dial = Dial(
17 x=40, # set x-position
18 y=40, # set y-position
19 width=150, # requested width of the dial
20 height=150, # requested height of the dial
21 padding=12, # add 12 pixels around the dial to make room for labels
22 tick_label_font=terminalio.FONT, # the font used for the tick labels
23 needle_full=False,
24)
25
26my_needle = needle(my_dial, value=30)
27my_needle2 = needle(my_dial, value=60)
28
29my_group = displayio.Group()
30my_group.append(my_dial)
31
32
33display.show(my_group) # add high level Group to the display
34
35step_size = 1
36
37for this_value in range(1, 100 + 1, step_size):
38 my_needle.value = this_value
39 for this_other_value in range(1, 100, step_size):
40 my_needle2.value = this_other_value
41 display.refresh()
42 display.refresh() # force the display to refresh
43time.sleep(0.5)

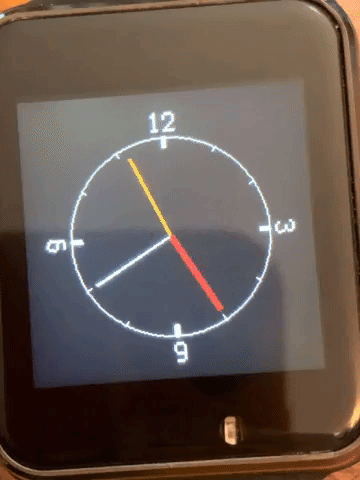

Functional clock¶
Example of a functional clock
examples/simple_dial_clock.py¶
1# SPDX-FileCopyrightText: 2023 Neradoc
2#
3# SPDX-License-Identifier: MIT
4
5import time
6import board
7import displayio
8import terminalio
9from circuitpython_simple_dial.simple_dial import Dial
10from circuitpython_simple_dial.dial_needle import needle
11
12
13display = board.DISPLAY
14
15# Create a Dial widget
16width = height = int(min(display.width, display.height) * 0.9)
17my_dial = Dial(
18 x=display.width // 2 - width // 2, # set x-position
19 y=display.height // 2 - height // 2, # set y-position
20 width=width, # requested width of the dial
21 height=height, # requested height of the dial
22 tick_label_font=terminalio.FONT, # the font used for the tick labels
23 needle_full=False,
24 padding=24, # add 12 pixels around the dial to make room for labels
25 tick_label_scale=2,
26 major_tick_labels=(
27 "6",
28 "9",
29 "12",
30 "3",
31 ),
32 minor_tick_labels=(
33 "7",
34 "8",
35 "10",
36 "11",
37 "1",
38 "2",
39 "4",
40 "5",
41 ),
42)
43
44needle_hour = needle(
45 my_dial,
46 value=0,
47 needle_color=0xFF0000,
48 needle_width=5,
49 needle_pad=30,
50 min_value=0,
51 max_value=12,
52)
53needle_min = needle(
54 my_dial, value=0, needle_color=0xFF8000, needle_width=5, min_value=0, max_value=60
55)
56needle_sec = needle(
57 my_dial, value=0, needle_color=0xFFFFFF, needle_width=2, min_value=0, max_value=60
58)
59
60my_group = displayio.Group()
61my_group.append(my_dial)
62
63display.show(my_group)
64
65while True:
66 now = time.localtime()
67 needle_hour.value = (now.tm_hour + 7) % 12
68 needle_min.value = (now.tm_min + 30) % 60
69 needle_sec.value = (now.tm_sec + 30) % 60
70 display.refresh()
